GRACO In-Line Electronic Dispense Meters & Control Valves

Code

Description

247453

In-Line Meter (U.S.)

239824

IM5 In-Line Meter

244075

In-Line Meter (U.S.)

244076

In-Line Meter (Metric)

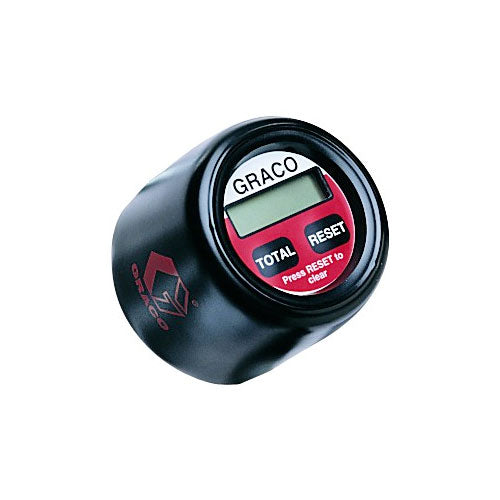

IM6 Inline Meter Replacement Electronics

235901

Replacement Electronics (Metric)

235878

Replacement Electronics (U.S.)

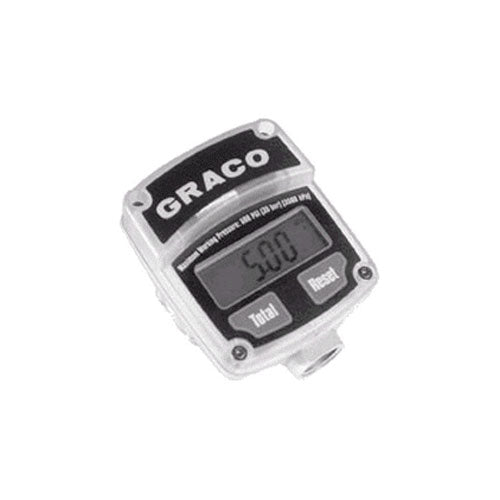

IM5 In-Line Meter

IM6 In-Line Meter

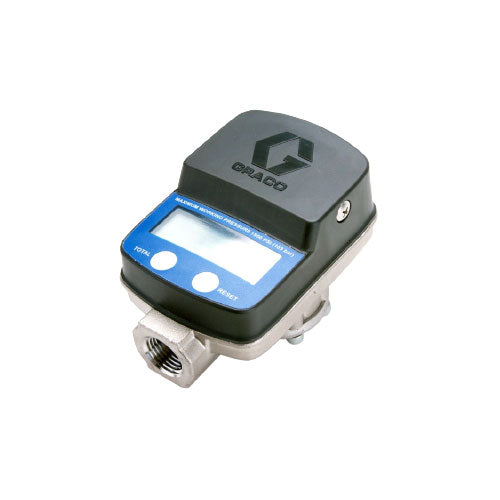

SDI15 In-Line Meter

Flow Range

0.5 to 5 gpm (1.9 to 19 lpm)

0.12 to 12.0 gpm (0.46 to 45.6 lpm)

0.1 to 14 gpm (0.4 to 53 lpm)

Max. Working Pressure

500 psi (34 bar)

1500 psi (103 bar)

??

Weight

1.8 lb (0.8 kg)

1.9 lb (0.95 kg)

??

Units of Measurement

Quarts, pints, gallons, liters

Quarts, pints, gallons, liters

Quarts, pints, gallons, liters

Accuracy

± 0.5%

± 1.0%

± 0.5%

Inlet/Outlet

1/2 npt

1/2 npt

1/2 npt

Operating Temperature Range

-4 - 122º F (-20 - 50º C)

-4º - 130º F (-20º - 55º C)

-4 - 122º F (-20 - 50º C)

Storage Temperature Range

-13 - 122º F (-25 - 50º C)

-40º - 140º F (-40º - 60º C)

-13 - 122º F (-25 - 50º C)

Outdoor

yes

yes

No

Max Totaliser

99,999

99,999

99,999

Max Recorded Dispense

999.99

999.99

999.99

Meter Pressure Loss

15 psi (1 bar) @ 5 gpm (19 lpm)

120 psi (8.3 bar) @ 6 gpm (23 lpm)

22 psi (1.5 bar) @ 14 gpm (53 lpm)

Battery

9-volt, alkaline

Lithium

2AA alkaline

Wetted Parts

nickel, zinc, zenite, nitrile rubber

aluminium, carbon steel, nitrile rubber, nickel, bronze, SST #304, cast ALNICO 8

aluminium, carbon steel, nitrile rubber, nickel, bronze, SST, Geolast
