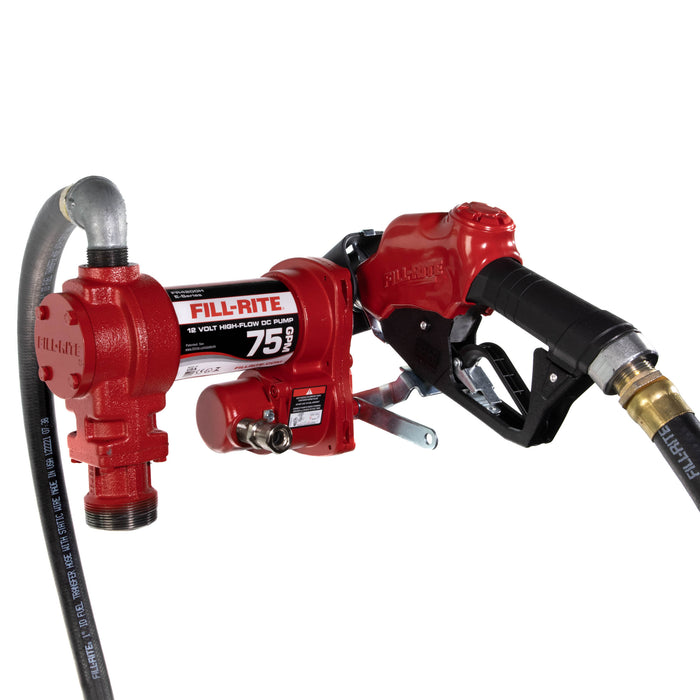

This Pump model is a 12V DC, 75 LPM, heavy-duty, ATEX Fuel Transfer Pump.
Fill-Rite is renowned for its exceptional durability and performance in even the harshest environments. Fill-Rite products are designed for rugged everyday use, extreme weather conditions, and both on and off-road applications. Replacement parts and rebuild kits is quick and convenient, ensuring your equipment stays in peak condition for years to come.
Durable Cast-Iron Construction – Built with heavy-duty cast iron, this pump is designed to endure the toughest conditions, whether on-site or in the field, ensuring unmatched reliability and durability.
Dependable Performance – Featuring Fill-Rite’s trusted rotary vane pump technology, it delivers an impressive flow rate of 75 liters per minute, making it ideal for refueling equipment with fuel tanks ranging from 75 to 302 liters.
Ideal for Mobile Tanks – Powered by a robust 12V motor and equipped with a 50.8mm bung mount, this pump is perfect for wiring to 12-volt batteries and securely mounting onto transfer tanks in truck beds.
Versatile Fluid Compatibility – Engineered for daily use, this pump handles a variety of fuels, including gasoline, diesel, ethanol blends up to E15, biodiesel blends up to B20, kerosene, and mineral spirits.
Easy Installation – The adjustable electrical junction box rotates 180°, simplifying wiring and enabling flexible installation even in tight spaces.
Long-Lasting Performance – A thermally-protected motor prevents overheating, ensuring years of worry-free operation and dependable performance.
Enhanced Equipment Protection – A built-in mesh strainer filters out particulates, safeguarding your equipment from fuel contamination and potential damage.
Reliable On-Off Control – The pump features a robust on-off switch lever with a durable metal stopping arm, designed to withstand frequent use without premature failure.
Industry-Leading Warranty – Backed by a Limited Lifetime Warranty, this pump reflects Fill-Rite’s commitment to protecting your investment.
PERFORMANCE:
-
Max Flowrate: 75Lpm
-
Power Type: 12V DC
-
Compatible Fluids: Diesel, Kerosene, Biodiesel up to B20, Gasoline up to E15, Mineral Spirits
-
Inlet Size / Connection / Thread: 25.4mm / Female / NPT
-
Outlet Size / Connection / Thread: 25.4mm / Female / NPT
-
Mounting Size / Thread / Type: 50.8mm / NPT / Bung Mount
-
Duty Cycle (min): 30min on / 30min off
-
Power Source: Electrical
-
Motor Power (HP): 0.25
-
Max Current (A): 19 A
-
Thermal Protection Switch: Yes
-
Self Priming: Yes
-
Suction Lift (mm): 2438.4
-
Dry Vacuum (mm Hg): 127
-
Discharge Head (mm): 11277.6
-
Strainer Mesh Size (Micron): 20x20
-
Max Operating Pressure (PSI): 16
-
Viscosity Range (cSt): 1 to 4
DIMENSIONS:
-
Assembled Product Height x Width x Depth (mm): 165.1 x 330 x 393.7
-
Assembled Product Weight (kg): 8.7
-
Package Height x Width x Depth (mm): 254 x 553.9 x 503.1
-
Gross Weight (kg): 16.3
